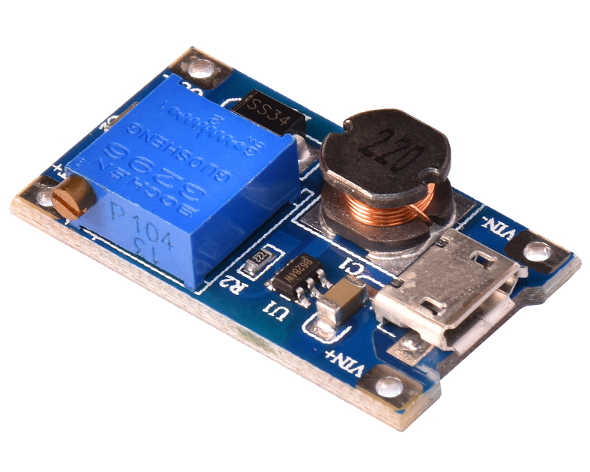

STEP-UP MODULE MT3608,Input DC2V-24V, Max Output 28V, 1.2MHz
Mã SKU: Z0000000-509807
Danh mục : Chưa phân loại
Technical Parameters:
• 2V to 24V Input Voltage
• Up to 28V Output Voltage
• Maximum output current: 2A
• Integrated 80m Ohm Power MOSFET
• 1.2MHz Fixed Switching Frequency
• Internal 4A Switch Current Limit
•…
Thông tin sản phẩm
Technical Parameters:
• 2V to 24V Input Voltage
• Up to 28V Output Voltage
• Maximum output current: 2A
• Integrated 80m Ohm Power MOSFET
• 1.2MHz Fixed Switching Frequency
• Internal 4A Switch Current Limit
• Adjustable Output Voltage
• Internal Compensation
• Automatic Pulse Frequency Modulation Mode at Light Loads
• up to 97% Efficiency
• Product size: 32 mm x 18 mm x 10 mm
